Outline notes, links & sketches

SEALS

MATERIALS:

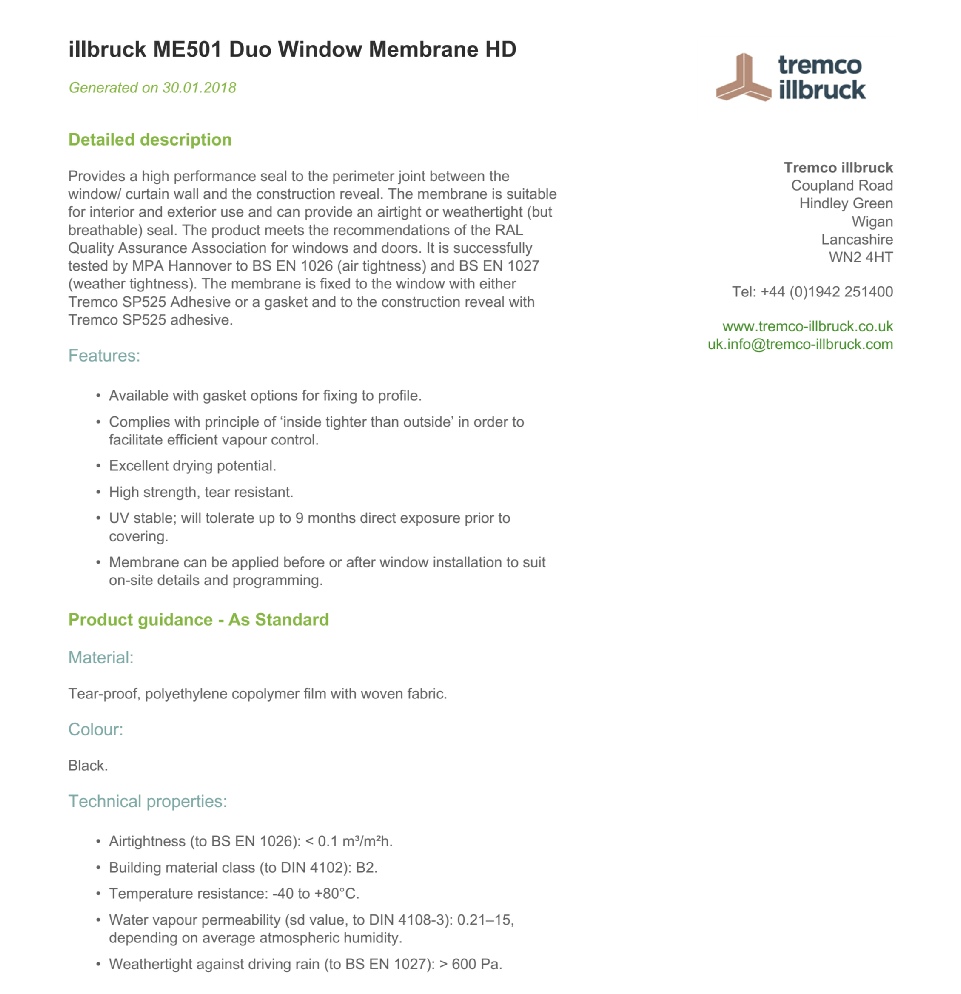

ME 501 DUO WINDOW MEMBRANE HD

(Includes advanced acrylic self adhesive  strip)

—-----

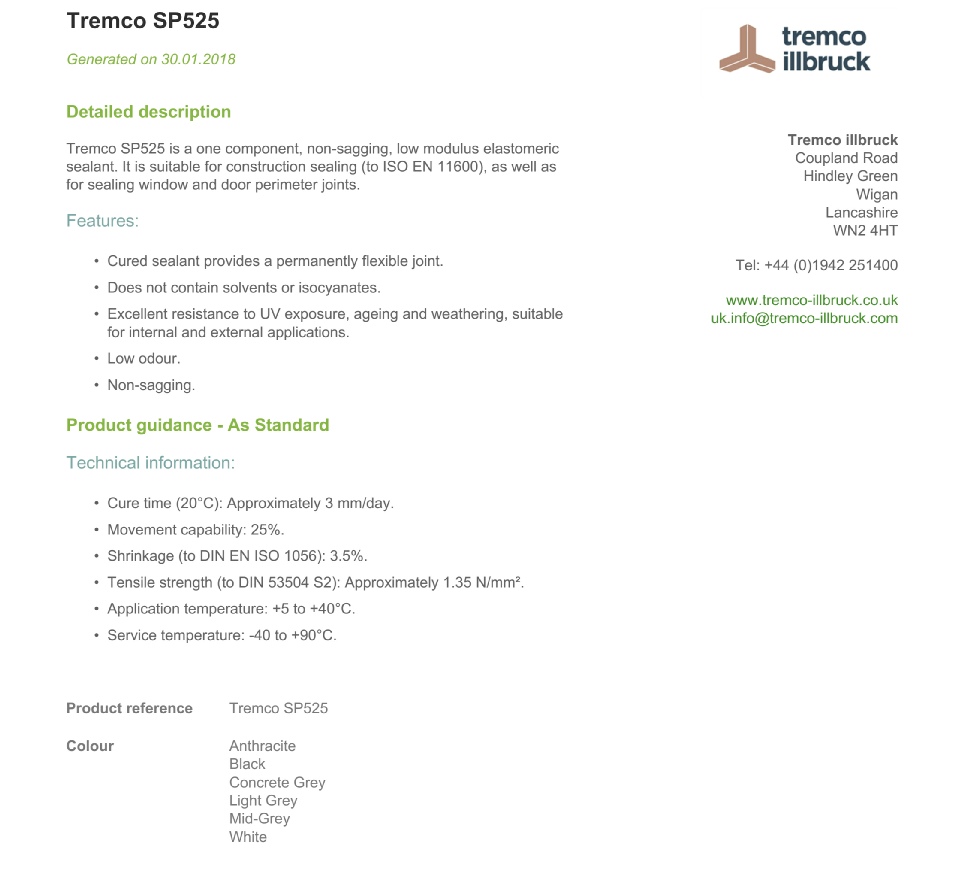

SP 525 FRAME AND FACADE SEALANT & ADHESIVE

—-----

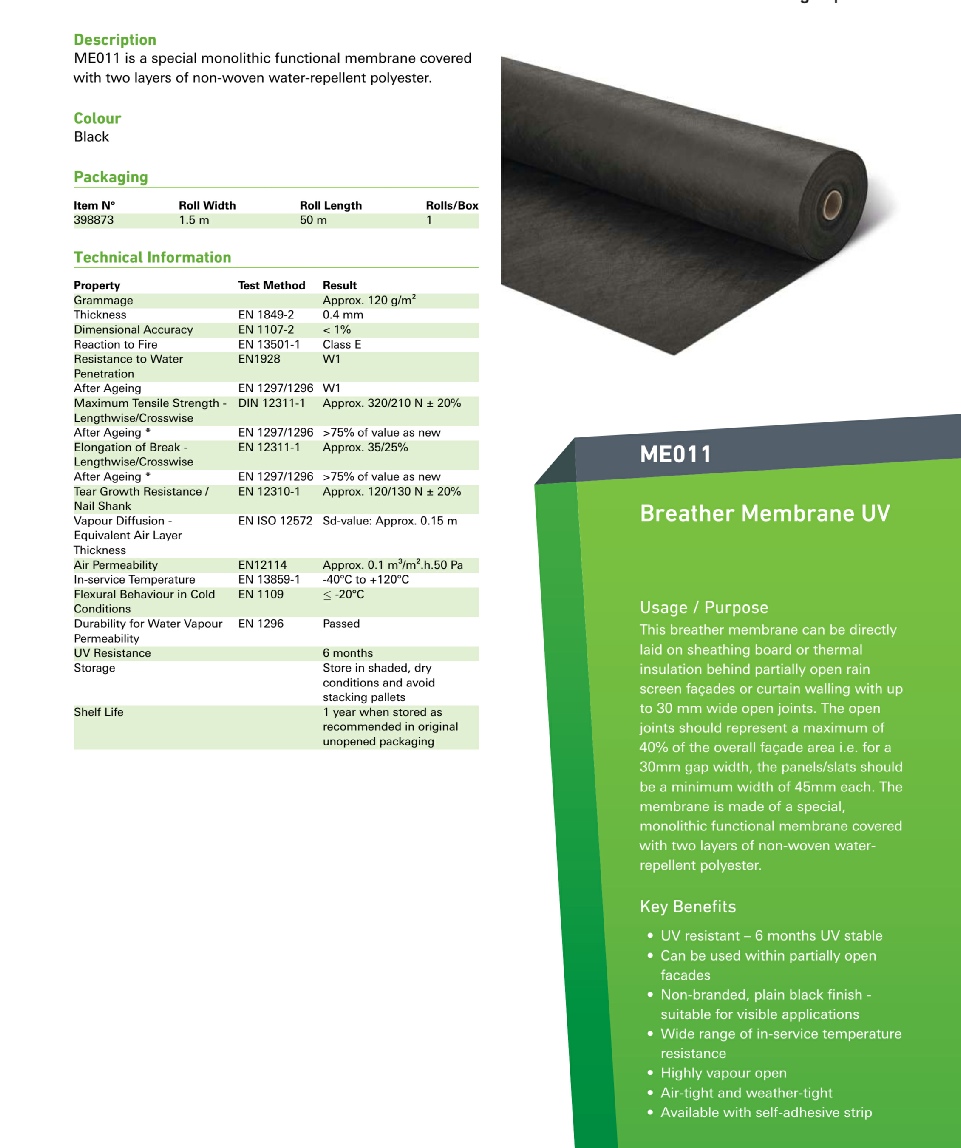

ME 011 BREATHER MEMBRANE

—-----

ME 541 FOLDED CORNERS

MATERIALS:

ME 500 INTERNAL SEAL

(Applied to window frame)

—-----

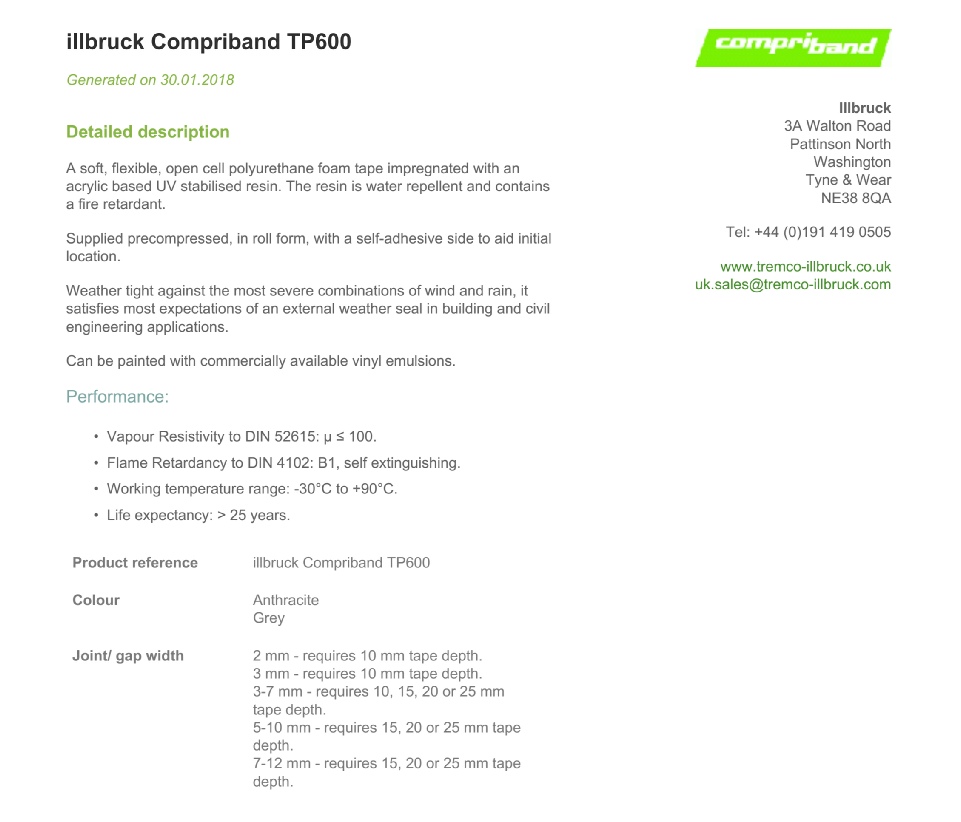

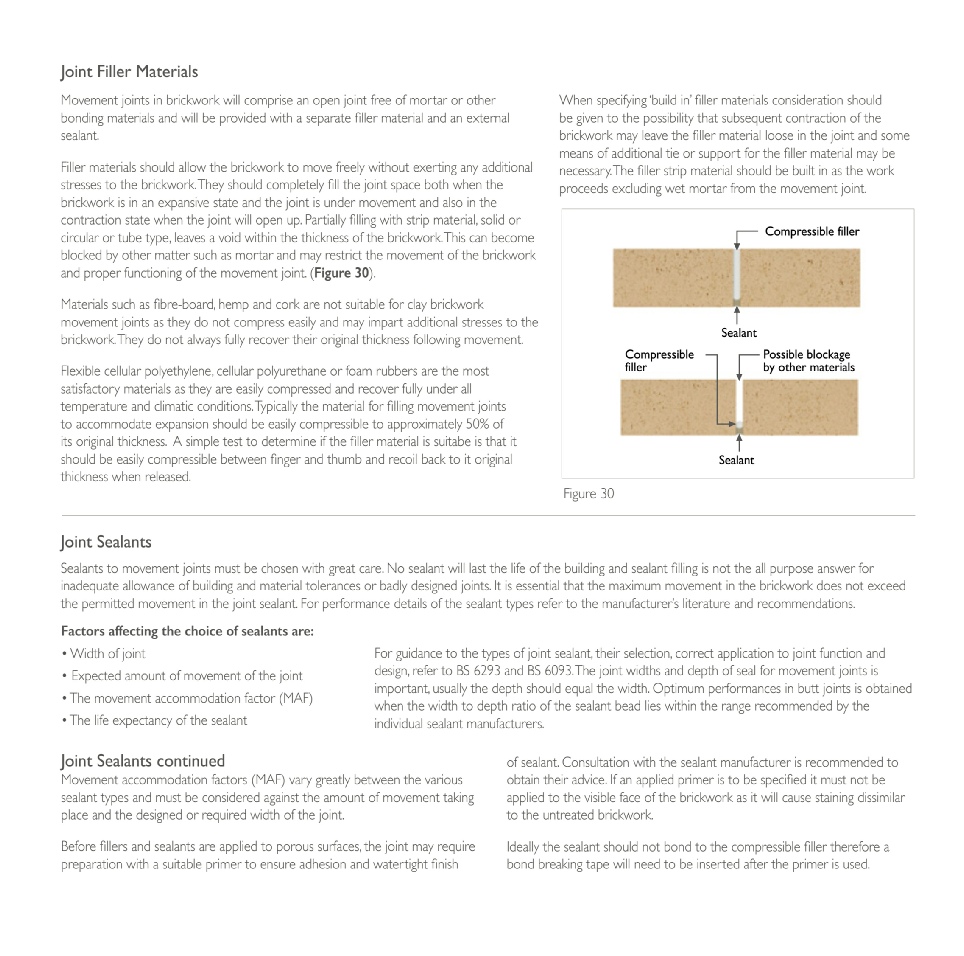

TP 600 EXTERNAL JOINT SEALANT

(Between frame & block)

—-----

FM 230 POLYURETANE FOAM

(Thermal & sound insulant)

—-----

ME 902 PRIMER TO BLOCKWORK

—-----

SP 525 FRAME SEALANT  AROUND BRACKETS TO ASSURE CONTINUITY OF SEAL.

(Alternatively apply patch of ME500 over bracket and seal with SP 525)

MATERIALS:

SP 925 AIRSEAL

(No priming needed for blockwork)

—-----

AT 150 PRIMER (TO PVCU)

MATERIALS:

ILLBRUCK TRIO

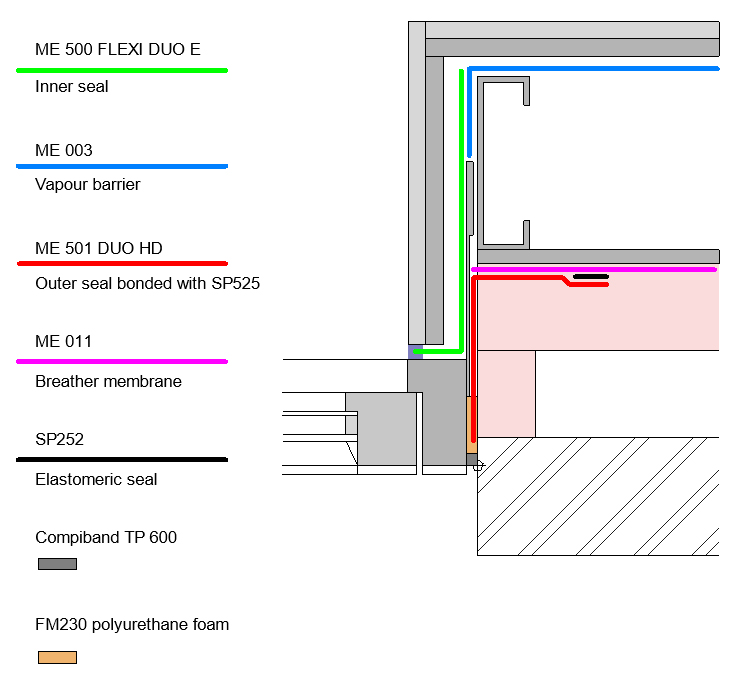

  REVIT LINK : #window seals

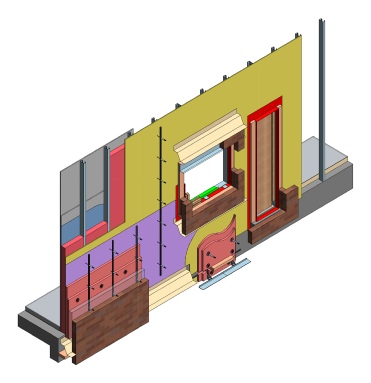

REVIT LINK : #Det Item 000_Wall_3d_External_SFS_Masonry_Ext_01

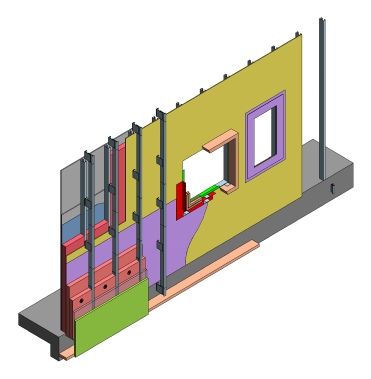

REVIT LINK : #Det Item 000_Wall_3d_External_SFS_Rainscreen_Ext_01

Layer 01   102mm  Brick Outer Skin

Layer 02   75mm    Air

Layer 03   40mm    Insulation Kingspan Kooltherm K15

Layer 04   40mm    Insulation Kingspan Kooltherm K15

Layer 05   1mm      Breather Membrane

Layer 06   12mm    Calcium Silicate Board

Layer 07   100mm  Rockwool Flexi Batt

Layer 08   1mm      Vapour Barrier

Layer 09   15mm    Plasterboard

Layer 10   15mm    Plasterboard

---

U-Value:

Layer 01   35mm  Rainscreen Cladding

Layer 02   38mm    Air

Layer 03   80mm    Insulation Rockwool Duoslab

Layer 04   80mm    Insulation Rockwool Duoslab

Layer 05   1mm      Breather Membrane

Layer 06   12mm    Calcium Silicate Board

Layer 07   100mm  Rockwool Flexi Batt

Layer 08   1mm      Vapour Barrier

Layer 09   15mm    Plasterboard

Layer 10   15mm    Plasterboard

---

U-Value:
