DOORS - Ironmongery_2

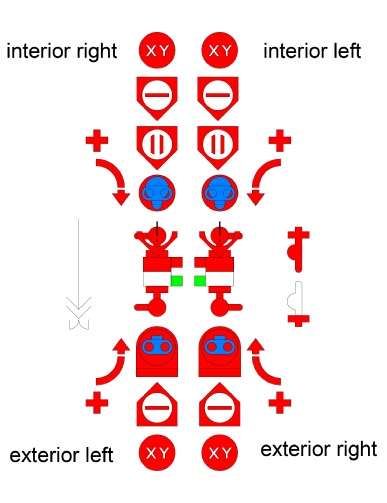

Dbl Sglsw_No Lock_Set 01

…bad doors are everywhere

                                 VOX

It’s not you…

Apply Visibility Parameters to the Nested Components within the ironmongery set family

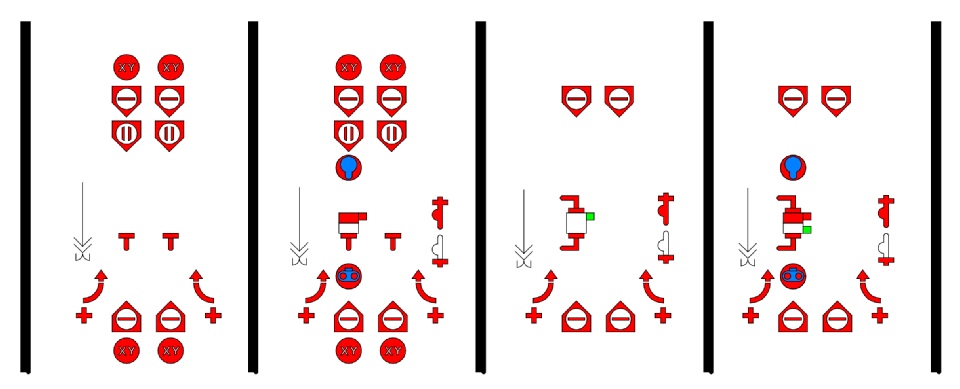

Dbl Sglsw_Dead Lock_Set 01

Dbl Sglsw_Latch Lock_Set 01

Dbl Sglsw_Sash Lock_Set 01

Visibility Parameters

Nested Family Parameters

Revit Key Scheduling

Multiple item data entry from a drop down key source ie scheduled component entries from a drop down list of Ironmongery Sets

#Det Item 250_double door_Ironmongery Set

  REVIT PROJECT  LINK : #Project_Ironmongery Sets
